Technics - SH-4060 Audio Programmable Timer (Rare) / SU-8022K Amplifier / ST-8011K Tuner / RS-T230 Stereo set - Multiple models
No. 96551486





This well-preserved set includes a rare Technics programmable timer, amplifier, tuner, and cassette deck, all tested and in excellent condition, with original user manual and additional RCA cables.

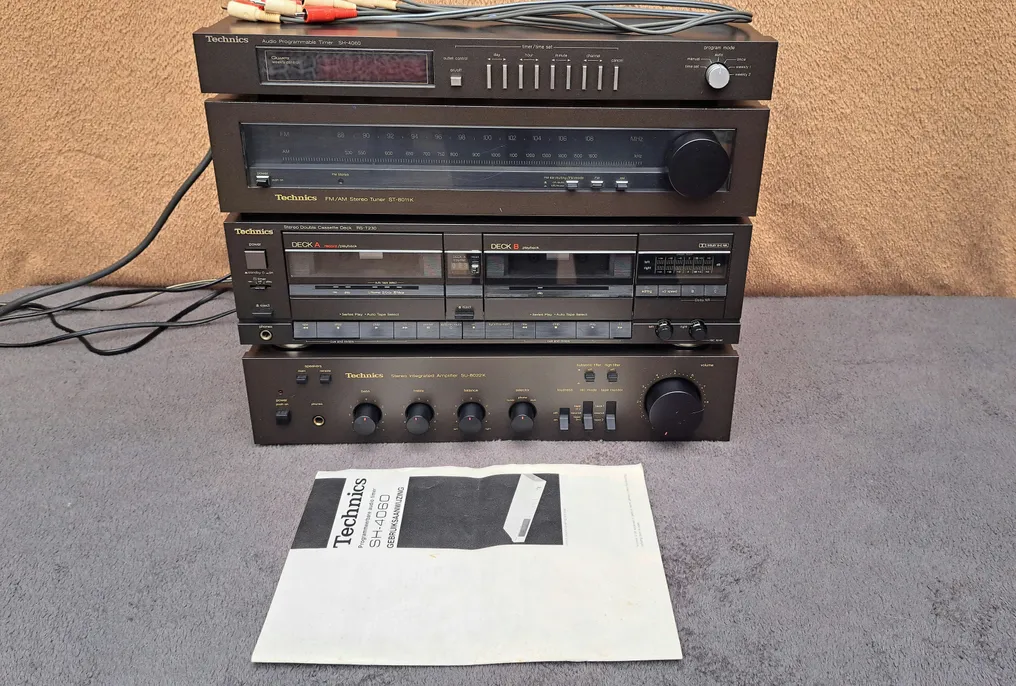

Beautiful complete set from Technics.
Consists of:

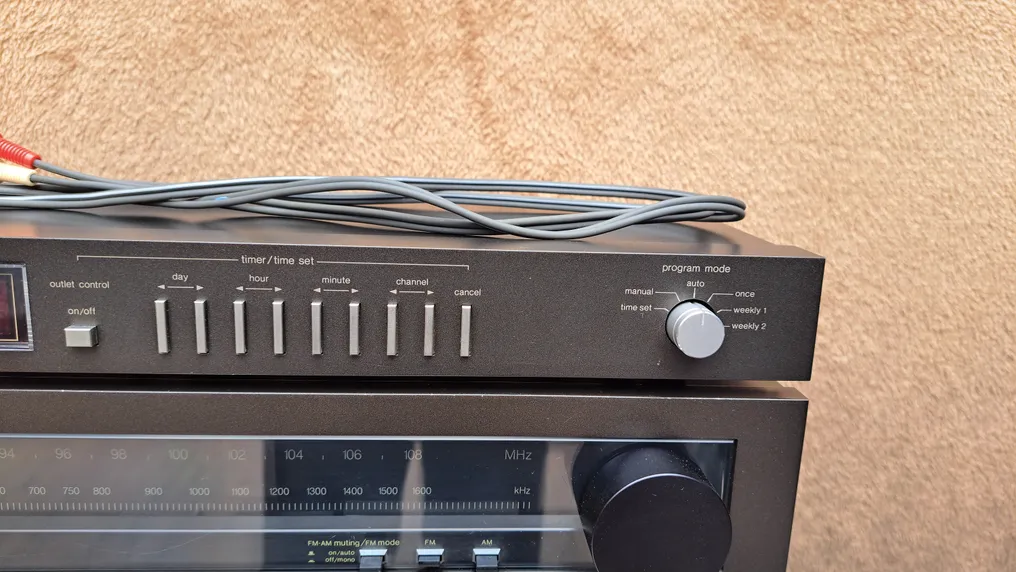

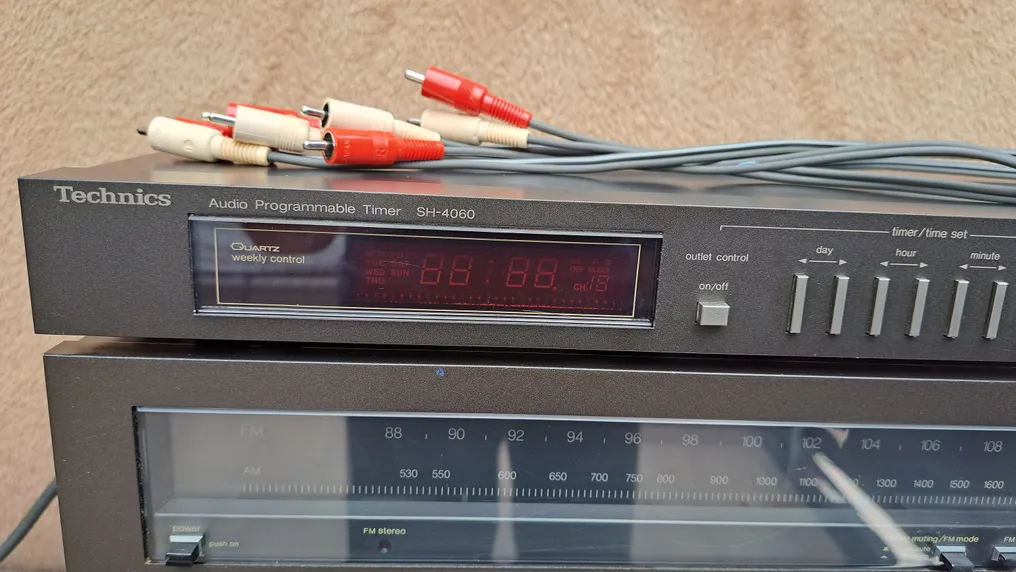

SH-4060 Audio Programmable Timer (Rare)

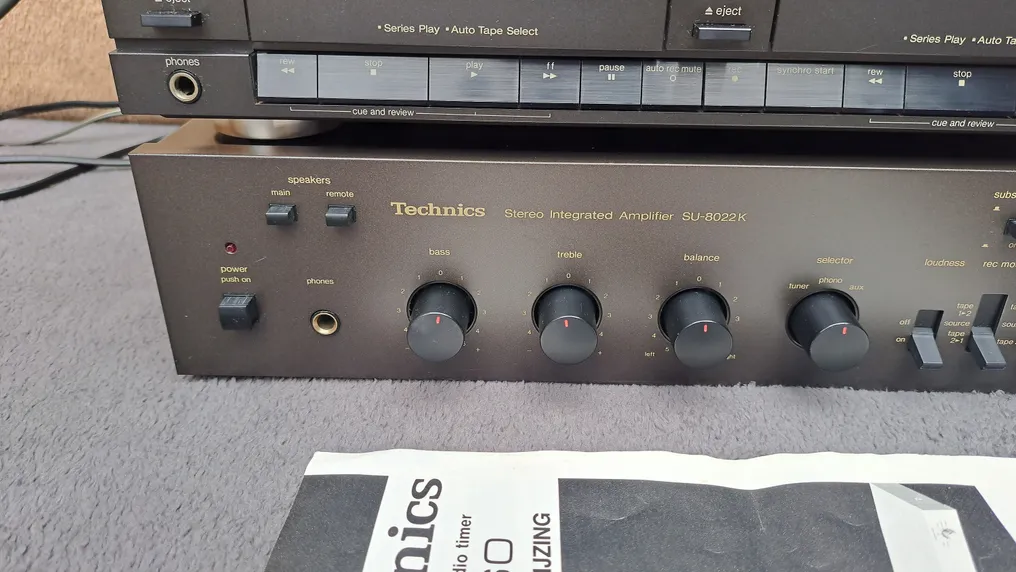

SU-8022K Amplifier
ST-8011K Tuner
RS-T230 Cassette Deck
Everything works.
There are two RCA cables included.
Look carefully at the photos for the condition.
These are part of the description of the object.
Specifications SH-4060 Audio Programmable Timer
Number of entrances:
1 x AC (50/60 Hz; 110 V/120 V/220 V/240 V).
Number of outputs:
4 x AC (Schuko sockets).
1 x output
Technical data
Display: Fluorescent display (24-hour display).
Possible programming:
Single: multiple
Weekly: multiple
Special features
FL-display
Dimensions: 430 x 53 x 158 mm (WxHxD)
Weight: 1.9 kg
Specifications SU-8022K
Output power: 35 watts per channel at 8Ω (stereo)
Frequency response: 10 Hz to 50 kHz
Total harmonic distortion: 0.03%
Damping factor: 32
Input sensitivity: 2.5 mV (MM), 180 mV (DIN), 150 mV (line)
Signal-to-noise ratio: 72 dB (MM), 86 dB (line)
Channel separation: 55 dB (line)
Output: 150 mV (line), 30 mV (DIN)
Speaker load impedance: 4 Ω to 16 Ω
Dimensions: 430 x 97 x 240 mm
Weight: 5.4 kg
Specifications ST-8011K
Type: Mono/Stereo Tuner
Tuning bands: FM, AM
Adjustment scale: Analog
FM tuning range: 88 to 108 MHz
MW tuning range: 525 to 1605 kHz
Sensitivity: 1.2 uV (FM), 30 uV (MW)
Signal-to-noise ratio: 69 dB (FM)
Deformation: 0.3% (FM)
Selectivity: 60 dB (FM), 30 dB (MW)
Frequency response: 20 Hz to 15 kHz (FM)
Output: 600 mV
Dimensions: 430 x 97 x 240 mm
Weight: 3.2 kg
Specifications RS-T230
Type: double compact cassette deck
Track system: 4-track, 2-channel stereo
Tape speed: 4.8 cm/s
Buttons: 1 x record/play, 1 x play, 1 x erase
Motor: electronic control DC
Tape type: type I, CrO2, metal
B, C of rice suppression
Frequency response: 20 Hz to 16 kHz (metal tape)
Signal-to-noise ratio: 74 dB (Dolby C)
Wow in Flutter: 0.07%
Input: 60 mV (line)
Output: 0.4 V (line)
Dimensions: 430 x 125 x 235 mm
Weight: 4.5 kg
Carefully packaged and shipped with Track & Trace.
(If you want to send insured, the shipping costs are higher and this will be discussed.)
Beautiful complete set from Technics.
Consists of:
SH-4060 Audio Programmable Timer (Rare)
SU-8022K Amplifier
ST-8011K Tuner
RS-T230 Cassette Deck
Everything works.
There are two RCA cables included.
Look carefully at the photos for the condition.
These are part of the description of the object.
Specifications SH-4060 Audio Programmable Timer
Number of entrances:
1 x AC (50/60 Hz; 110 V/120 V/220 V/240 V).
Number of outputs:
4 x AC (Schuko sockets).
1 x output
Technical data
Display: Fluorescent display (24-hour display).
Possible programming:
Single: multiple
Weekly: multiple
Special features
FL-display
Dimensions: 430 x 53 x 158 mm (WxHxD)
Weight: 1.9 kg
Specifications SU-8022K
Output power: 35 watts per channel at 8Ω (stereo)
Frequency response: 10 Hz to 50 kHz
Total harmonic distortion: 0.03%
Damping factor: 32
Input sensitivity: 2.5 mV (MM), 180 mV (DIN), 150 mV (line)
Signal-to-noise ratio: 72 dB (MM), 86 dB (line)
Channel separation: 55 dB (line)
Output: 150 mV (line), 30 mV (DIN)
Speaker load impedance: 4 Ω to 16 Ω
Dimensions: 430 x 97 x 240 mm
Weight: 5.4 kg
Specifications ST-8011K
Type: Mono/Stereo Tuner
Tuning bands: FM, AM
Adjustment scale: Analog
FM tuning range: 88 to 108 MHz
MW tuning range: 525 to 1605 kHz
Sensitivity: 1.2 uV (FM), 30 uV (MW)
Signal-to-noise ratio: 69 dB (FM)
Deformation: 0.3% (FM)
Selectivity: 60 dB (FM), 30 dB (MW)
Frequency response: 20 Hz to 15 kHz (FM)
Output: 600 mV
Dimensions: 430 x 97 x 240 mm
Weight: 3.2 kg
Specifications RS-T230
Type: double compact cassette deck
Track system: 4-track, 2-channel stereo
Tape speed: 4.8 cm/s
Buttons: 1 x record/play, 1 x play, 1 x erase
Motor: electronic control DC
Tape type: type I, CrO2, metal
B, C of rice suppression
Frequency response: 20 Hz to 16 kHz (metal tape)
Signal-to-noise ratio: 74 dB (Dolby C)
Wow in Flutter: 0.07%
Input: 60 mV (line)
Output: 0.4 V (line)
Dimensions: 430 x 125 x 235 mm
Weight: 4.5 kg
Carefully packaged and shipped with Track & Trace.
(If you want to send insured, the shipping costs are higher and this will be discussed.)
