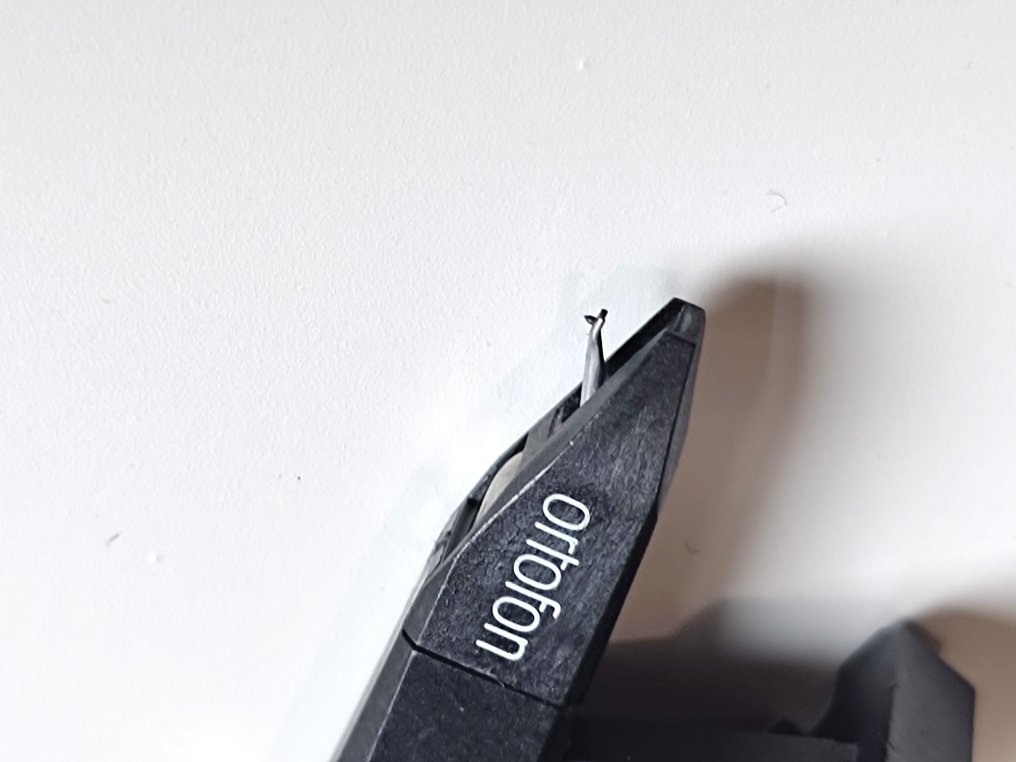

Ortofon - OMB - mit Original OM 10 Nadel Cartridge and/or needles

I offer you a very high-quality and great-sounding Ortofon OMB cartridge with an original Ortofon OM 10 needle.

Ortofon OMB-10 is an improved version with better technical characteristics than the Ortofon OMB-5.

The needle is in very good condition.
The cartridge is in very good condition.
The pickup is in a tested, well-maintained, very good condition.

This is a really great upgrade for your turntable.

Technical Data
Output voltage at 1 kHz: 4 mV
Channel balance at 1 kHz: 2.0 dB
Channel separation: 22 dB at 1 kHz; 15 dB at 15 kHz.
- Frequency range: 20 Hz–22 kHz
- Frequency response: 20 Hz–20 kHz +3/-1 dB
- FIM distortion at recommended contact force, DIN 45.542: %
Support capacity at 315 Hz at a recommended contact force of 70 µm.
- Dynamic lateral compliance: 25 µm/mN
Needle type: elliptical
- Radius of the needle tip: r/R 8/18 µm
Mass of the needle tip: 0.5 mg
Contact force: 1.25–1.75 g (12.5–17.5 mN)
- Recommended torque: 1.5 g (15 mN)
- Spurwinkel: 20°
- Internal impedance: 750 Ohms
Internal inductance: 450 mH
- Recommended load resistor: 47 kΩ
Recommended load capacity: 200–500 pF
- Color: Black
Weight 2.5g: (5g with included additional weight)
Feature: ***without an inserted additional weight, suitable for medium-weight tonearms.
