Akai - X-201D - 4 track Reel to reel deck 18 cm

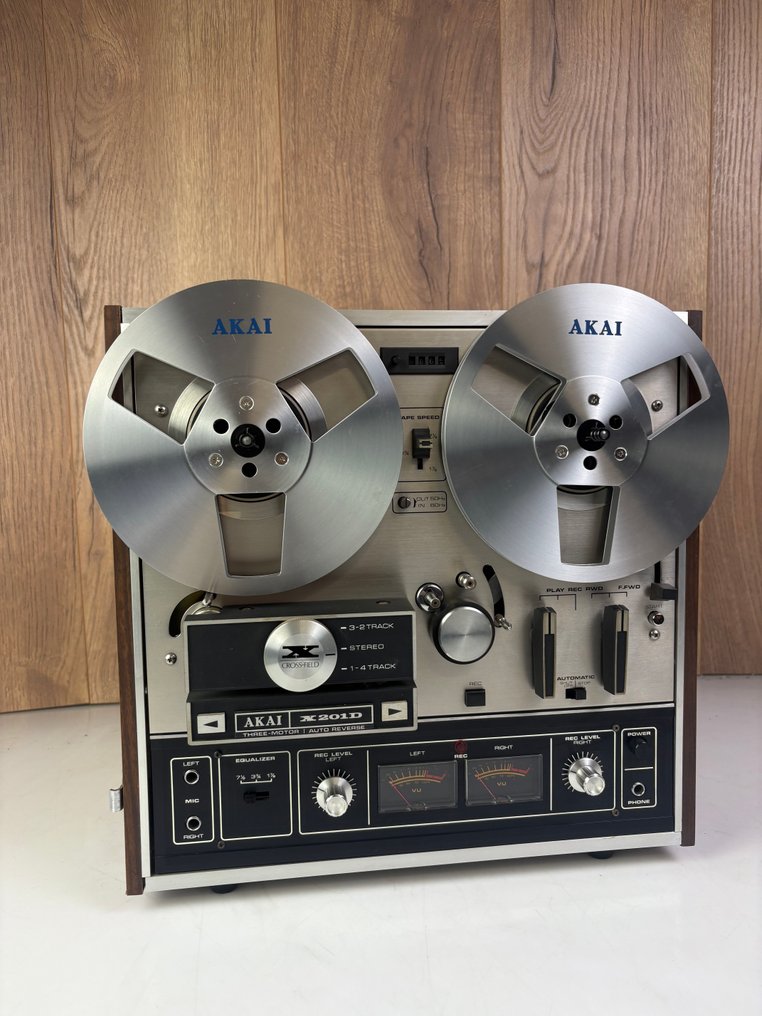

Beautiful Akai X201D tape recorder in beautiful condition, for years of listening pleasure!

To deliver this product properly, it is carefully packed in very strong boxes, thereby wrapped in bubble wrap with lots of padding. We mainly use plastic to fill up the package, if wished differently please contact us. The package is shipped insured to protect both the buyer and seller. For further packing wishes please message after purchase.

Photos serve as additional description of product condition / condition of display & LEDs. Please review them carefully before purchase.

Orders to islands, or special destinations have a higher shipping cost, for example; Canary Islands

Without the reels, shown for display.

DESCRIPTION:

On conventional recorders, the signal and bias are applied to the same recording head.

Therefore, the frequencies recorded, especially high frequency signals, tend to be attenuated or erased by the effect of the bias field.

With the exclusive Akai Cross-Field Head, however, the signal and bias heads are mounted separately in opposition with each other with their centrers slightly off.

As the recorded signal is entirely unaffected by the prevailing effect of the bias field, tape can be recorded over the entire frequency spectrum with maximum fidelity even at low tape speed.


SPECS:

Track system: 4-track, 2-channel, stereo/monaural system
Heads: 1 x record/playback, 1 x erase, 1 x bias
Motor: 2 x reel drive, 1 x capstan
Reel size: up to 7 inch reel
Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.08% (7 1⁄2 ips)
Frequency response: 30Hz to 26kHz (7 1⁄2 ips)
Signal to Noise Ratio: 50dB
Total harmonic distortion: 3%
Crosstalk: 45dB
Input: 50mV (line), 5mV (DIN), 0.5mV (mic)
Output: 1.23V (line), 0.4V (DIN)
Semiconductors: 16 x transistors, 17 x diodes
Dimensions: 358 x 358 x 227mm
Weight: 17kg
