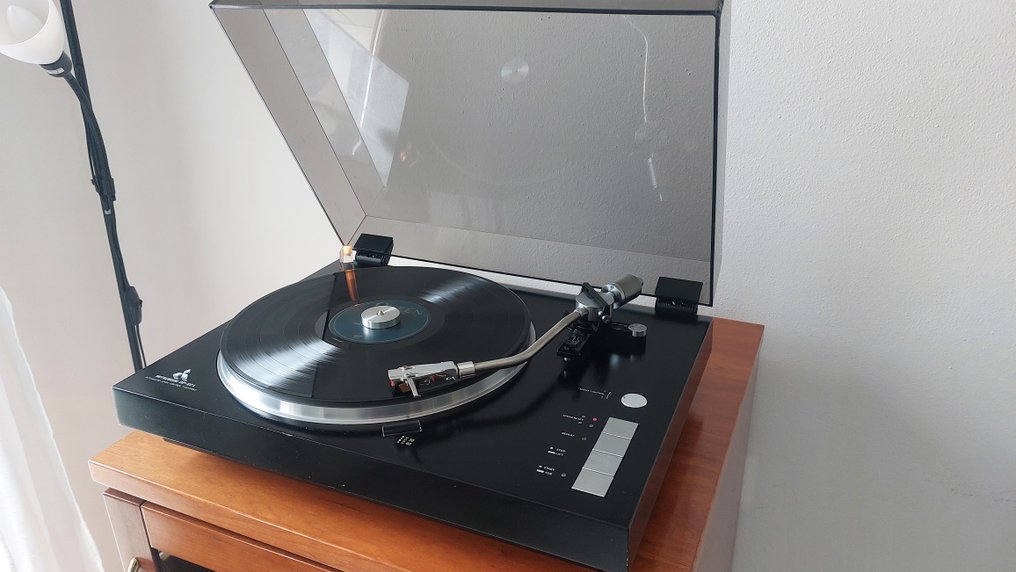

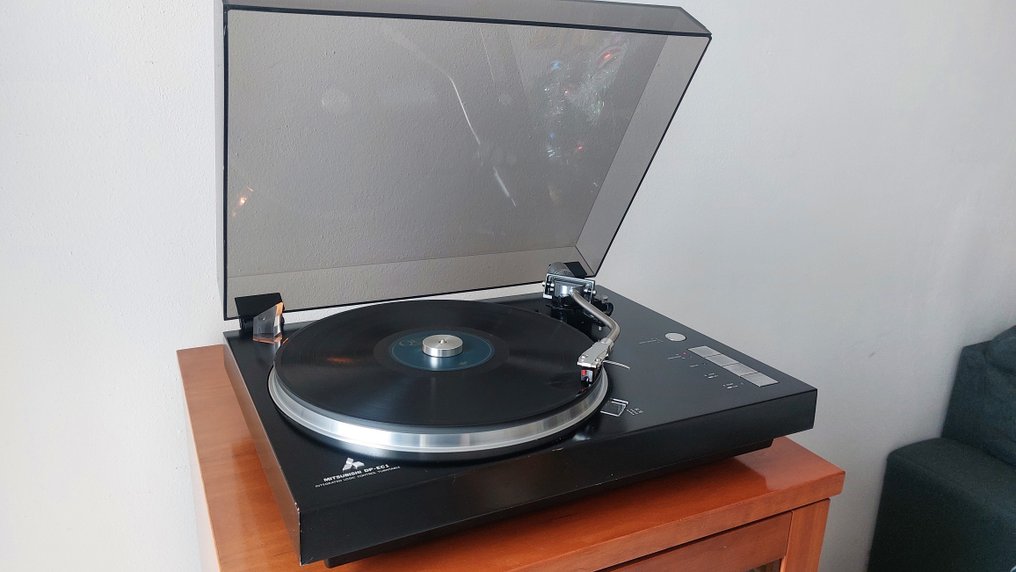

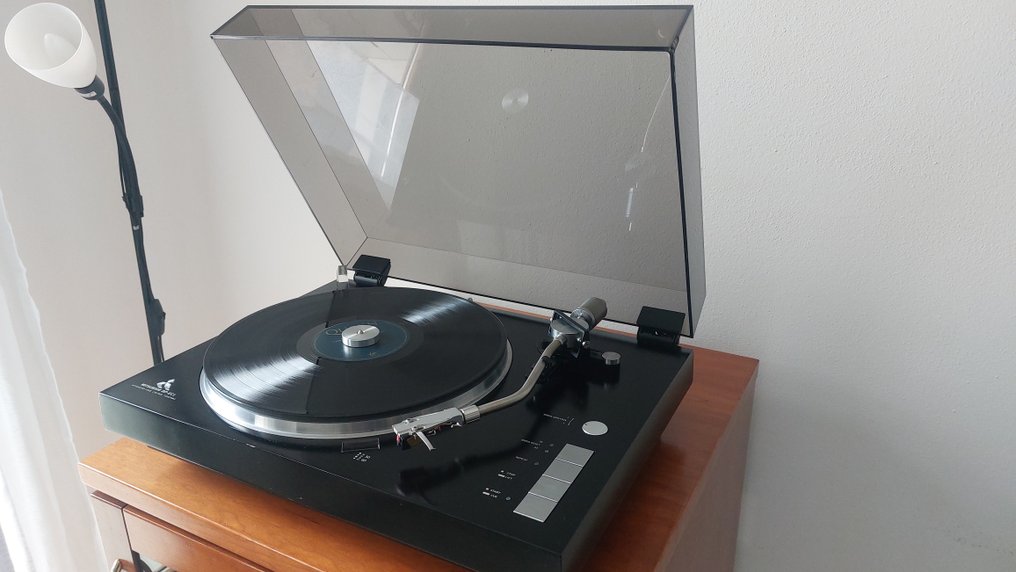

Mitsubishi DP-EC1
Integrated logic control record player with manual copy instructions, very rare. In 1976, it was Mitsubishi's top model and was truly well-built with fantastic sound. It is part of my collection.

Works Completed
Replaced two straps for the arm.
Mounted shell with heavy mass and Stanton 500 cartridge with a new original stylus.
Calibration of movement and arm positioning.
Resin refinish, arm lock hook.
Complete calibration with a two-point gauge for balance scale weight tracing and anti-scating adjustment with a dedicated disc.

Note: With this head, a ground wire is not necessary.

Mitsubishi DP-EC1
Specifications
Type: completely automatic electronically controlled operation.

Drive system: direct drive system, 12-pole DC FG servomotor with 24 slots.

Dish: 312 mm, 1.8 kg, die-cast aluminum alloy

Speed: 33 and 45 rpm

Speed regulation: +-3%

Wow e flutter: 0.025%

Rimbombo: -65 dB

Arm: universal type with static balancing.

Total length: 320 mm

Distance between pin and needle: 227 mm

Stylus force range: from 0 to 3 g

Projection: 14 mm

Offset angle: 22 degrees

Portatestina: cast aluminum (9.8 g)

Cartridge weight range: from 8 to 20 g (including the head and secondary weight).

Dimensions: 475 x 150 x 370 mm

Weight: 11 kg
