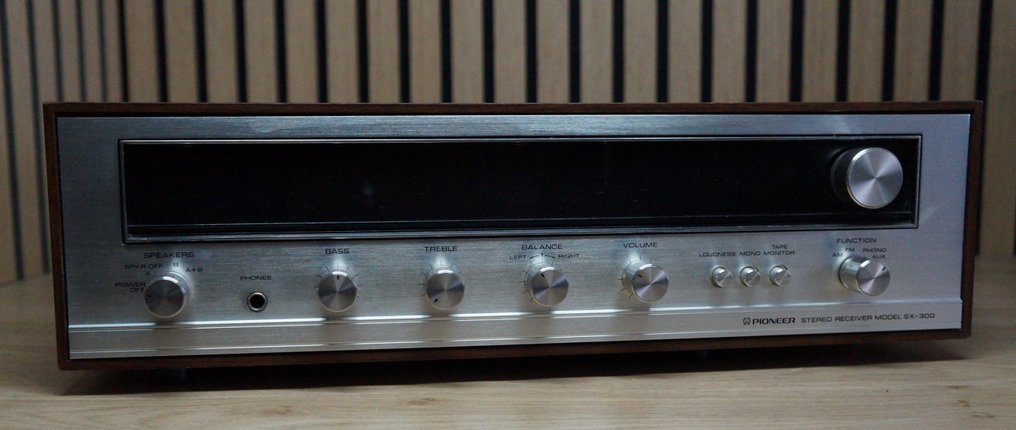

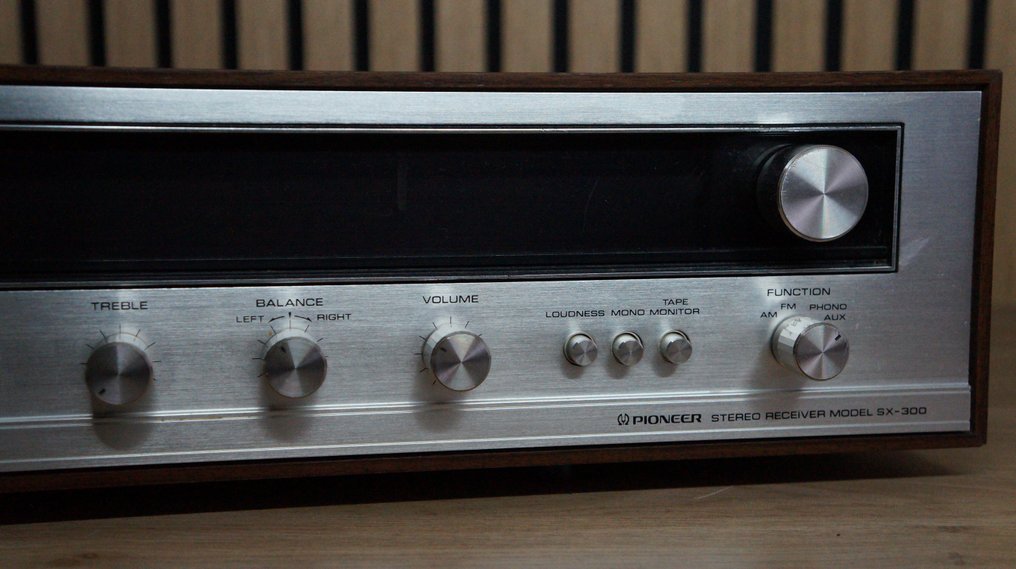

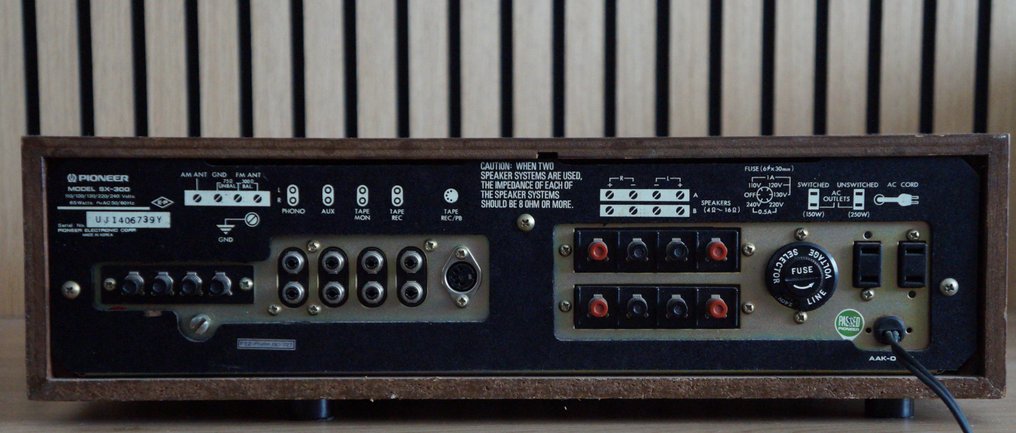

Pioneer - SX-300 Stereo Solid state stereo receiver
Bidding closed
2 weeks ago

Pioneer - SX-300 Stereo Solid state stereo receiver

The unit features a linear dial FM scale with a large tuning meter, a FET-based FM front end and a 3-way variable capacitor for better FM reception under all conditions. Accurate RIAA equalization is within 1dB. It can handle all your stereo needs, including a turntable, tape deck, and additional units such as cartridge players. Specifications: Tuning Range: FM, MW Output Power: 7 watts per channel into 8Ω (stereo) Frequency Response: 30Hz to 20kHz Total Harmonic Distortion: 1% Damping Factor: 20Ω Input Sensitivity: 2.5mV (MM), 150mV (DIN), 150mV (line) Signal-to-Noise Ratio: 70dB (MM), 80dB (DIN), 80dB (line) Output: 150mV (line), 30mV (DIN) Speaker Load Impedance: 4Ω to 16Ω Semiconductors: 1 x FET, 31 x transistors, 23Ω Diodes Dimensions: 441 x 132 x 324 mm Weight: 6 kg Note: 1) The frequency scale and S-meter have new LED lighting. 2) The FM frequency has been reset. Everything else is in its original condition! 3) It has been tested and works well! 4) The Pioneer is in good condition and has visible signs of use! And there are always scratches or dents, which cannot be ruled out, and they are not always visible in the photos! The goods are well packed in bubble wrap and will always remain that way Shipped insured with track & trace code.

No. 100016683

No longer available
Pioneer - SX-300 Stereo Solid state stereo receiver

Pioneer - SX-300 Stereo Solid state stereo receiver

The unit features a linear dial FM scale with a large tuning meter, a
FET-based FM front end and a 3-way variable capacitor for better
FM reception under all conditions. Accurate RIAA equalization is within 1dB.

It can handle all your stereo needs, including a turntable, tape deck,
and additional units such as cartridge players.

Specifications:
Tuning Range: FM, MW
Output Power: 7 watts per channel into 8Ω (stereo)
Frequency Response: 30Hz to 20kHz
Total Harmonic Distortion: 1%
Damping Factor: 20Ω
Input Sensitivity: 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal-to-Noise Ratio: 70dB (MM), 80dB (DIN), 80dB (line)
Output: 150mV (line), 30mV (DIN)
Speaker Load Impedance: 4Ω to 16Ω
Semiconductors: 1 x FET, 31 x transistors, 23Ω Diodes
Dimensions: 441 x 132 x 324 mm
Weight: 6 kg

Note:
1) The frequency scale and S-meter have new LED lighting.

2) The FM frequency has been reset.
Everything else is in its original condition!

3) It has been tested and works well!

4) The Pioneer is in good condition and has visible signs of use!

And there are always scratches or dents, which cannot be ruled out,
and they are not always visible in the photos!

The goods are well packed in bubble wrap and will always remain that way
Shipped insured with track & trace code.
