Sony - ST-2950F Tuner

ST 2950F is an analog tuner produced in the mid-1970s in Japan, distinguished by high quality and very good sensitivity.

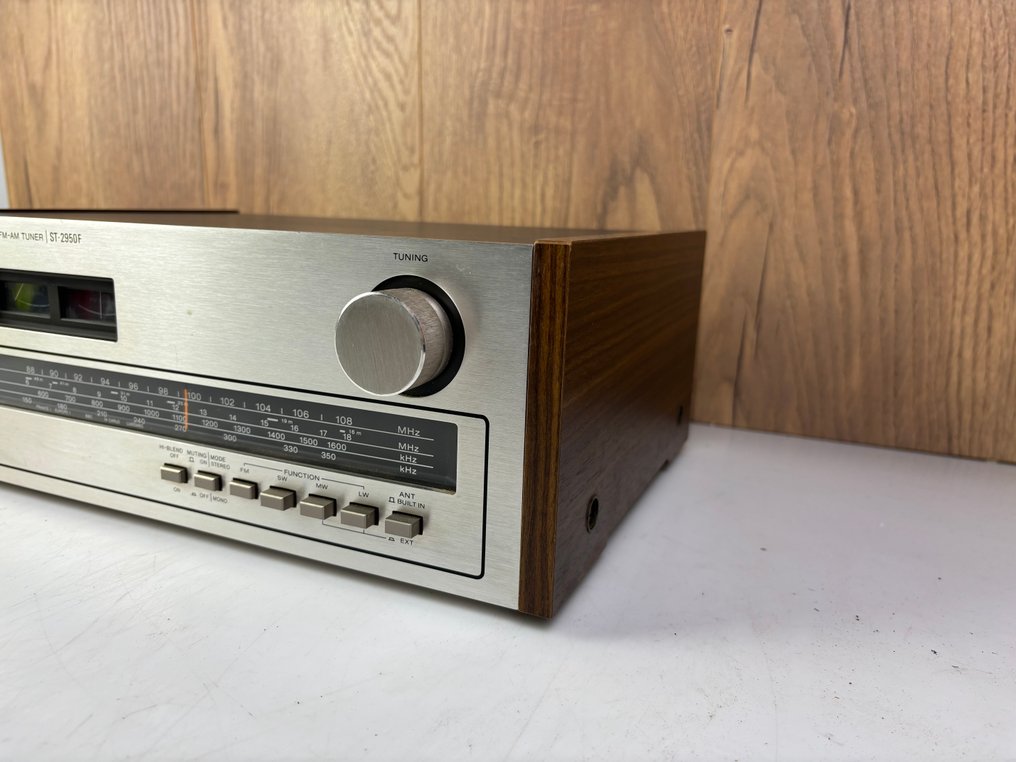

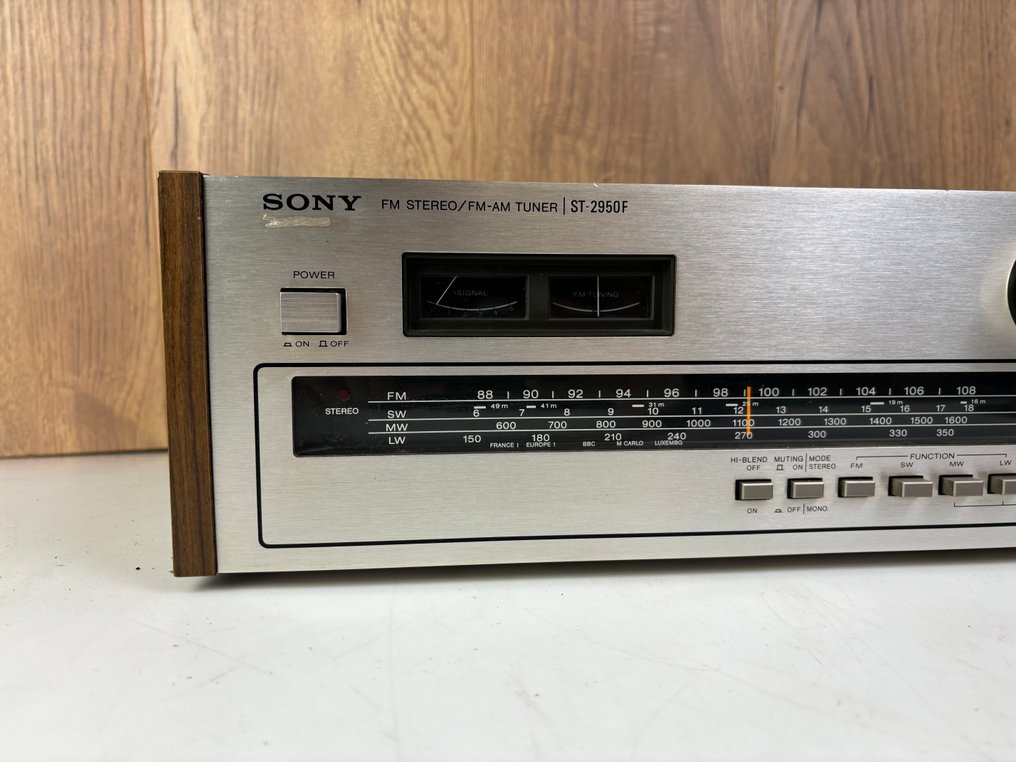

Even the simple and refined design characteristic of Sony draws attention.
The HF mixer (High-Blend button) provides excellent FM stereo by significantly reducing background noise, and the Muting button allows switching from one station to another without background noise.

Technical parameters
Mono/stereo tuner
– FM range 87.5 - 108 MHz.
Tuning of FM, MW, LW, SW bands.
– FM tuning range: 87.5 – 108 MHz
– MW receiver range: 530 – 1605 kHz
– LW tuning range: 150 – 350 kHz
- SW tuning range: 6-18 MHz
– sensitivity: 2uV (FM), 100uV (MW), 100uV (LW), 30uV (SW)
– signal-to-noise ratio: 68 dB (FM), 50 dB (MW), 50 dB (LW), 50 dB (SW)
– distortion: 0.6% (FM), 0.5% (MW), 0.5% (LW), 0.5% (SW)
– selectivity – 50dB (FM), 50dB (MW), 50dB (LW), 45dB (SW)
– frequency range – 40 Hz – 12.5 kHz (FM)
- output sensitivity 750 mV (FM)
- weight: 7.5 kg
Dimensions: 40cm x 15cm x 28cm (width x height x depth)
Year of construction 1976/78
Made in Japan

To ensure proper delivery of this product, it is carefully packed in very sturdy boxes, wrapped in bubble wrap with plenty of padding material. We mainly use plastic as padding material, but if you prefer a different option, please contact us. The package is shipped insured to protect both the buyer and the seller. For any additional packing requests, please send a message after purchase. Photos serve as additional descriptions of the condition of the product / the condition of the display & LEDs. Please review these carefully before purchasing. Orders to islands or special destinations, such as the Canary Islands, have higher shipping costs.
