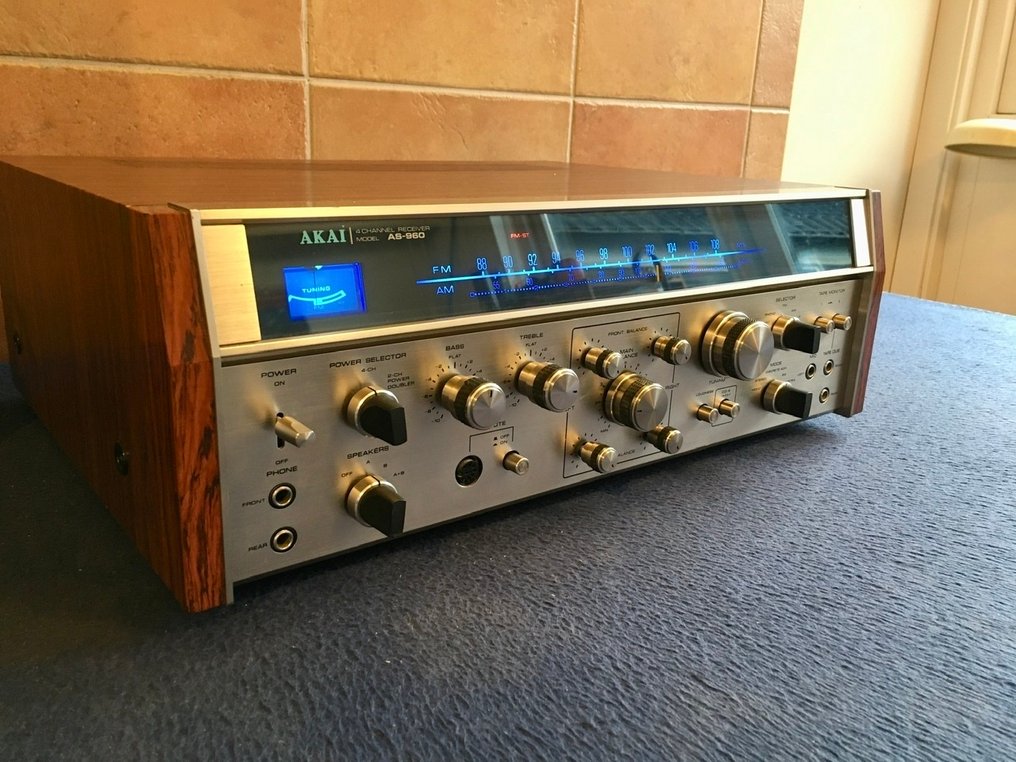

Akai - AS-960 Quadro Solid state stereo receiver
06
days
15
hours
03
minutes
08
seconds
Current bid
€ 113
No reserve price
Expert
Selected by Ariel Cabello
Holds dual bachelor's degrees in electronics and physics with 20 years in audio engineering.
Estimate € 450 - € 550
7 other people are watching this object
 Bidder 3362 | €113 | |
|---|---|---|
 Bidder 7127 | €103 | |
| Bidder 3362 | €94 | |
Catawiki Buyer Protection
Your payment’s safe with us until you receive your object.View details
Trustpilot 4.4 | 123641 reviews
Rated Excellent on Trustpilot.
Akai AS-960 Quadro quadraphonic receiver, manufactured 1973–1975, tested and working with excellent physical condition, includes refurbished unit and power cord.
AI-assisted summary
Description from the seller
Awesome looking quadro - stereo receiver!
It's working like a charm.
New led lamps for a fresh look. Originals are inside in a bag.
Contacts cleaned
With speaker output breakout terminals.
Very good stereo reception
Manufacturer: Akai
Model: AS-960
Type: Quadrophonic Receiver
Years of manufacture: 1973 - 1975
Made in: Japan
Color: silver, wooden case walnut
Remote control:
Power consumption: 300 watts max.
Dimensions: 480 x 168 x 402 mm
Weight: 13,06 Kg
Original price approx.: 1'900 DM
Connections:
Number of inputs:
Phono 1: 3 mV, 50 kOhm, max. 130 mV
Phono 2: 3 mV, 50 kOhm
Microphone: 3.8 mV, 50 kOhm
AUX 1, 2: 170 mV, 100 kOhm
Tape Play 1: 170 mV, 100 kOhm
Tape Play 2: 150 mV, 100 kOhm
Tape Play DIN: 170 mV Coaxial FM antenna connection (75 Ohm)
AM- Antenna connection (300 Ohm)
Number of outputs:
Tape Rec 1: 170 mV
Tape Rec 2: 150 mV Tape Rec DIN: 34 mV
4 x speaker pairs: 2 x front, 2 x rear
2 x headphone outputs front + rear: 6.3 mm jack each
Technical Data:
Amplifier:
Continuous power: Quadrophonic
8 Ohm: 4 x 20 Watt
Continuous power: Stereo
8 Ohm: 2 x 40 Watt
Total harmonic distortion: < 0,1 %
Dämpfungsfaktor: 50 bei 8 Ohm, 1 kHz
Frequenzgang:
Phono: 100 Hz - 10 kHz, ± 1,5 dB
Hochpegel: 20 Hz - 50 kHz ± 3 dB
Signalrauschabstand:
Phono: >75 dB
Line: > 90 dB
Tone control:
Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz
Loudness: + 8 dB at 100 Hz, + 4.5 dB at 10 kHz
Low Filter (Subsonic):
High Filter:
Muting:
CD-4 Demodulator Part:
Input sensitivity: 150 mV
Input impedance: 100 kOhm
Distortion factor: 0,07
Signal-to-noise ratio: > 70 dB
Channel separation at 1 kHz:
Left to right: 50 dB
front to rear: 30 dB
Frequency range: 20 - 15'000 Hz
Tuner:
Reception: FM, AM
Frequencies:
FM: 87.5 - 108 MHz
MW: 525 - 1605 kHz
Input sensitivity:
FM: 2.0 µV
MW: 25 µV
Frequency response: 20 - 15'000 Hz
Distortion factor FM: Stereo < 0.8 %, < Mono 0,4 %
Signalrauschabstand:
UKW: 70 dB
AM: 40 dB
Stereo-Kanaltrennung: >40 dB at 1 kHz
Selectivity:
FM: 65 dB
MW: 30 dB
Co-wave selection: 2.0 dB
Spurious wave selection: > 70 dB
Image frequency attenuation:
FM: > 65 dB
MW: > 55 dB IF attenuation:
FM: > 90 dB
MW: > 45 dB
AM suppression: 45 dB
Special Features
2 VU meters
4-channel systems: CD-4, Discrete, SQ, RM
Microphone input front, mixable
MPX Noise Filter
FM Muting
Bass / Tweeter control V + H separately
Pictures are part of the description
Carefully insured shipped
Awesome looking quadro - stereo receiver!
It's working like a charm.
New led lamps for a fresh look. Originals are inside in a bag.
Contacts cleaned
With speaker output breakout terminals.
Very good stereo reception
Manufacturer: Akai
Model: AS-960
Type: Quadrophonic Receiver
Years of manufacture: 1973 - 1975
Made in: Japan
Color: silver, wooden case walnut
Remote control:
Power consumption: 300 watts max.
Dimensions: 480 x 168 x 402 mm
Weight: 13,06 Kg
Original price approx.: 1'900 DM
Connections:
Number of inputs:
Phono 1: 3 mV, 50 kOhm, max. 130 mV
Phono 2: 3 mV, 50 kOhm
Microphone: 3.8 mV, 50 kOhm
AUX 1, 2: 170 mV, 100 kOhm
Tape Play 1: 170 mV, 100 kOhm
Tape Play 2: 150 mV, 100 kOhm
Tape Play DIN: 170 mV Coaxial FM antenna connection (75 Ohm)
AM- Antenna connection (300 Ohm)
Number of outputs:
Tape Rec 1: 170 mV
Tape Rec 2: 150 mV Tape Rec DIN: 34 mV
4 x speaker pairs: 2 x front, 2 x rear
2 x headphone outputs front + rear: 6.3 mm jack each
Technical Data:
Amplifier:
Continuous power: Quadrophonic
8 Ohm: 4 x 20 Watt
Continuous power: Stereo
8 Ohm: 2 x 40 Watt
Total harmonic distortion: < 0,1 %
Dämpfungsfaktor: 50 bei 8 Ohm, 1 kHz
Frequenzgang:
Phono: 100 Hz - 10 kHz, ± 1,5 dB
Hochpegel: 20 Hz - 50 kHz ± 3 dB
Signalrauschabstand:
Phono: >75 dB
Line: > 90 dB
Tone control:
Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz
Loudness: + 8 dB at 100 Hz, + 4.5 dB at 10 kHz
Low Filter (Subsonic):
High Filter:
Muting:
CD-4 Demodulator Part:
Input sensitivity: 150 mV
Input impedance: 100 kOhm
Distortion factor: 0,07
Signal-to-noise ratio: > 70 dB
Channel separation at 1 kHz:
Left to right: 50 dB
front to rear: 30 dB
Frequency range: 20 - 15'000 Hz
Tuner:
Reception: FM, AM
Frequencies:
FM: 87.5 - 108 MHz
MW: 525 - 1605 kHz
Input sensitivity:
FM: 2.0 µV
MW: 25 µV
Frequency response: 20 - 15'000 Hz
Distortion factor FM: Stereo < 0.8 %, < Mono 0,4 %
Signalrauschabstand:
UKW: 70 dB
AM: 40 dB
Stereo-Kanaltrennung: >40 dB at 1 kHz
Selectivity:
FM: 65 dB
MW: 30 dB
Co-wave selection: 2.0 dB
Spurious wave selection: > 70 dB
Image frequency attenuation:
FM: > 65 dB
MW: > 55 dB IF attenuation:
FM: > 90 dB
MW: > 45 dB
AM suppression: 45 dB
Special Features
2 VU meters
4-channel systems: CD-4, Discrete, SQ, RM
Microphone input front, mixable
MPX Noise Filter
FM Muting
Bass / Tweeter control V + H separately
Pictures are part of the description
Carefully insured shipped
Details
Era
1900-2000
Brand
Akai
Model
AS-960 Quadro
Multiple Models
No
Physical condition
Excellent
Nr of items
1
Includes
Power cord, Refurbished
Weight
15 kg
Functional condition
Tested and working/playable
