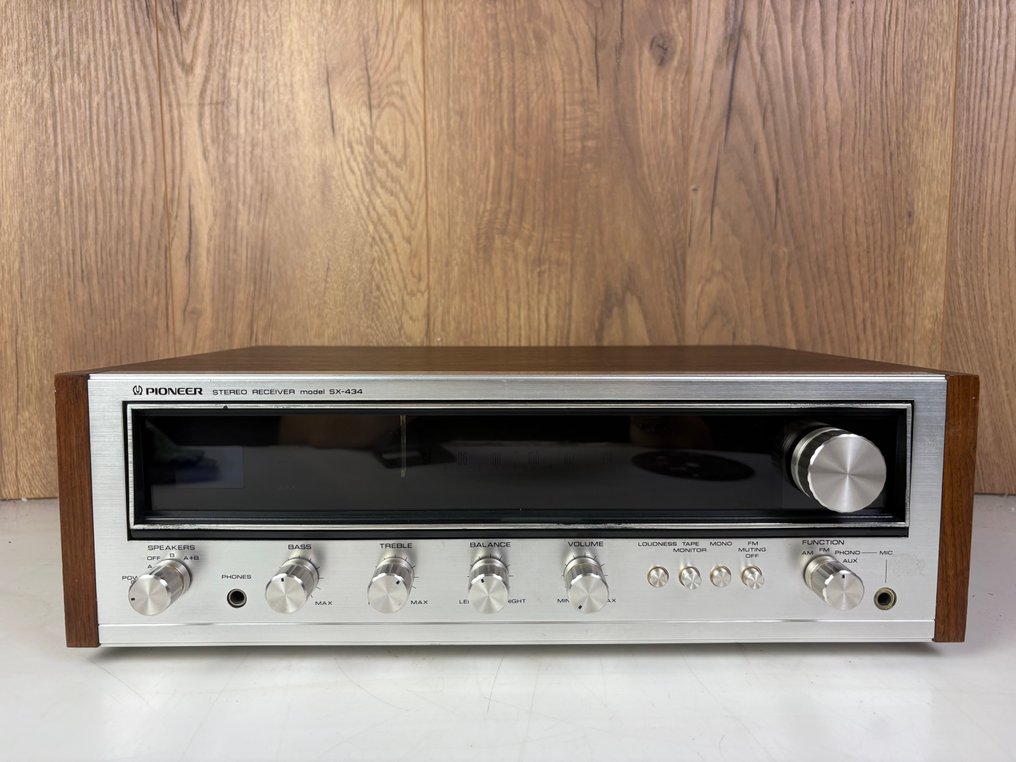

Pioneer - SX-434 - Solid state stereo receiver
06
days
13
hours
57
minutes
48
seconds
Starting bid
€ 1
Reserve price not met
Expert
Selected by Ariel Cabello
Holds dual bachelor's degrees in electronics and physics with 20 years in audio engineering.
Estimate € 280 - € 350
No bids placed
Catawiki Buyer Protection
Your payment’s safe with us until you receive your object.View details
Trustpilot 4.4 | 121798 reviews
Rated Excellent on Trustpilot.
Description from the seller
Beautiful Pioneer SX 434, classic 70s' perfect model from Pioneer.
It features a high-quality FM front end with a low-noise FET and a triple-frequency linear variable capacitor. Phase linear ceramic filters and an IC in the FM IF section ensure a high selectivity of 60dB.
Other features include click-stop-tone control, 2 pairs of speaker jacks, and a headphone jack.
Optically and technically in good condition, technically fully checked.
To deliver this product properly, it is packed in very strong boxes, wrapped in bubble wrap. In addition to the strong packaging, the box is labeled as fragile by means of orange 'fragile' tape. For further packaging wishes please message after purchase.
SPECS:
Tuning range: FM, MW
Output power: 15 watts per channel into 8Ω (stereo)
Frequency response: 30Hz to 25kHz
Total Harmonic Distortion: 0.8%
Damping Factor: 25
Input Sensitivity: 10mV (Microphone), 2.5mV (MM), 150mV (DIN), 150mV (Line)
Signal to Noise Ratio: 65dB (Microphone), 70dB (MM), 90dB (Line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 1 x FET, 3 x IC, 27 x Transistors, 13 x Diodes
Dimensions: 430 x 140 x 347mm
Weight: 8.1 kg
Accessories: FM T-type antenna
Year: 1974
Seller's Story
Audio Star is a Dutch audio webshop, located in Netherlands and online. Audio Star stands for audio for everyone, we offer audio in all segments! From low-end to high-end, everything to provide you with a wonderful listening experience. Audio Star is known for its customer friendliness where the customer is always #1!
Beautiful Pioneer SX 434, classic 70s' perfect model from Pioneer.
It features a high-quality FM front end with a low-noise FET and a triple-frequency linear variable capacitor. Phase linear ceramic filters and an IC in the FM IF section ensure a high selectivity of 60dB.
Other features include click-stop-tone control, 2 pairs of speaker jacks, and a headphone jack.
Optically and technically in good condition, technically fully checked.
To deliver this product properly, it is packed in very strong boxes, wrapped in bubble wrap. In addition to the strong packaging, the box is labeled as fragile by means of orange 'fragile' tape. For further packaging wishes please message after purchase.
SPECS:
Tuning range: FM, MW
Output power: 15 watts per channel into 8Ω (stereo)
Frequency response: 30Hz to 25kHz
Total Harmonic Distortion: 0.8%
Damping Factor: 25
Input Sensitivity: 10mV (Microphone), 2.5mV (MM), 150mV (DIN), 150mV (Line)
Signal to Noise Ratio: 65dB (Microphone), 70dB (MM), 90dB (Line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 1 x FET, 3 x IC, 27 x Transistors, 13 x Diodes
Dimensions: 430 x 140 x 347mm
Weight: 8.1 kg
Accessories: FM T-type antenna
Year: 1974
Seller's Story
Audio Star is a Dutch audio webshop, located in Netherlands and online. Audio Star stands for audio for everyone, we offer audio in all segments! From low-end to high-end, everything to provide you with a wonderful listening experience. Audio Star is known for its customer friendliness where the customer is always #1!
Details
Era
1900-2000
Brand
Pioneer
Model
SX-434 -
Multiple Models
No
Physical condition
Very good
Nr of items
1
Includes
No extra's
Year of Manufacturing
1974
Weight
8.1 kg
Functional condition
Tested and working/playable
