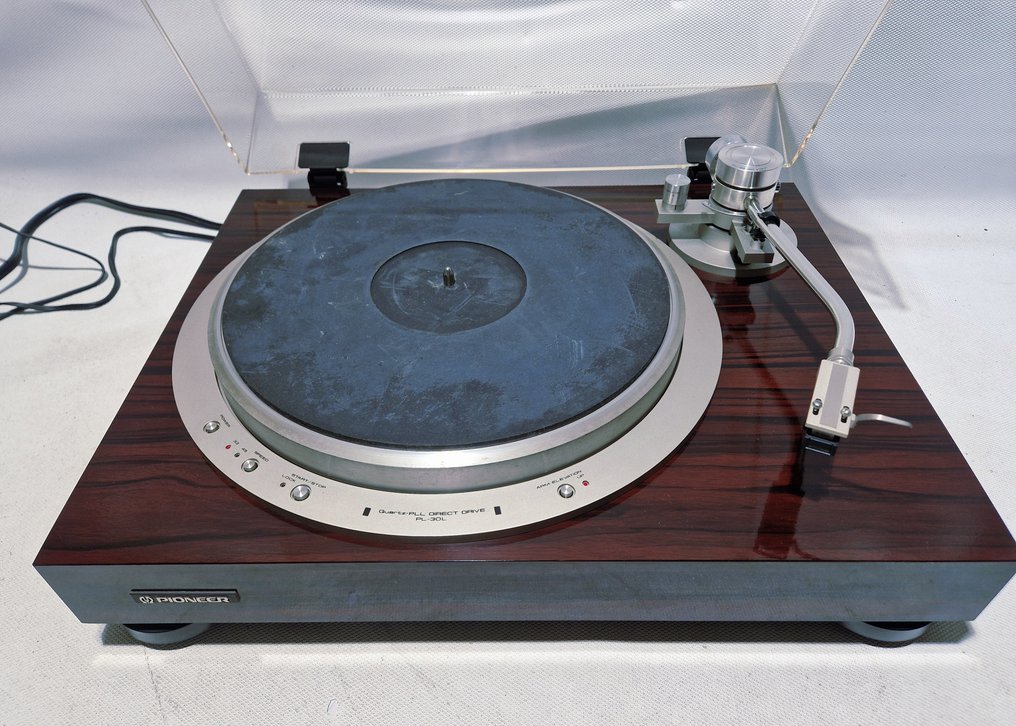

Pioneer - PL-30L Record player
Opens 11:00
Starting bid
€ 1
Add to your favourites to get an alert when the auction starts.
Expert
Selected by Ariel Cabello
Holds dual bachelor's degrees in electronics and physics with 20 years in audio engineering.
Estimate € 430 - € 500
Catawiki Buyer Protection
Your payment’s safe with us until you receive your object.View details
Trustpilot 4.4 | 121798 reviews
Rated Excellent on Trustpilot.
Description from the seller
Zeer gave Pioneer PL-30 with original packaging. It is in very good condition and has been fully inspected. The transformer has also been replaced from 100V to a nice ring core transformer for 230 volts. The dust cover is in neat condition but shows slight signs of use; see the photos for a complete impression. It has a small damage on the left side, as shown in the photo, but this does not affect its operation. Comes with a well-functioning SHURE element, the HI-TRACK M95NE.
It is carefully packed and shipped insured.
Specifications: pioneer Pl-30
Type player system without cartridges
Phono-motor section
Motor Quartz PLL DC servo Hall-motor
Drive system direct drive
Support structure SH/rotor system
Turntable diameter 31cm
Inertia mass of the turntable 330 kg-cm² (including turntable chairs)
Number of revolutions: 33 1/3, 45 rpm.
Electronic rotation speed change with a short-stroke switch.
Unequal rotation 0.012% or less (PL-30L, WRMS/FG direct measurement method)
0.013% of minder (PL-30, WRMS/FG direct measurement method)
0.023% of minder (WRMS/JIS)
Serial number 78 dB or more (DIN-B)
63 dB of noise (JIS)
Tax variation 0% (Needle pressure 200 g or less)
Startup characteristic 1/3 stroke or less.
Starting torque 1.3 kg-cm
Speed detection method Allround integration method FG
Rotational speed deviation no more than 0.002%
Drift time lapse: 0.00008% / u
Temperature variation: 0.00003% / °C.
Braking mechanism purely electronic
Toonarm section
Type oil brake system with static balance S-shaped pipe arm.
Effective length 250mm
Overhang 14mm
Tracking error + 2.1°, -1.2°
Needle pressure adjustment, weight 1, rotation 1g (0.1g scale).
Applicable pattern weight 4g to 13g when using the included shell.
Height adjustment range + / - 3mm
Main help aluminium impact-resistant casing, dead weight 10.5 g
Fastening mechanism quartz locking indicator
Quick stop
Silent lift up (electronic, only PL-30)
Used semiconductors Quartz: 1
IC:6
Transistor: 4
Diode: 4
Voltage 230 V AC, 50 Hz/60 Hz
Power consumption PL-30L: 12W
External dimensions Width 490 x Height 180 x Depth 401 mm
Weight 11.5 kg
Zeer gave Pioneer PL-30 with original packaging. It is in very good condition and has been fully inspected. The transformer has also been replaced from 100V to a nice ring core transformer for 230 volts. The dust cover is in neat condition but shows slight signs of use; see the photos for a complete impression. It has a small damage on the left side, as shown in the photo, but this does not affect its operation. Comes with a well-functioning SHURE element, the HI-TRACK M95NE.
It is carefully packed and shipped insured.
Specifications: pioneer Pl-30
Type player system without cartridges
Phono-motor section
Motor Quartz PLL DC servo Hall-motor
Drive system direct drive
Support structure SH/rotor system
Turntable diameter 31cm
Inertia mass of the turntable 330 kg-cm² (including turntable chairs)
Number of revolutions: 33 1/3, 45 rpm.
Electronic rotation speed change with a short-stroke switch.
Unequal rotation 0.012% or less (PL-30L, WRMS/FG direct measurement method)
0.013% of minder (PL-30, WRMS/FG direct measurement method)
0.023% of minder (WRMS/JIS)
Serial number 78 dB or more (DIN-B)
63 dB of noise (JIS)
Tax variation 0% (Needle pressure 200 g or less)
Startup characteristic 1/3 stroke or less.
Starting torque 1.3 kg-cm
Speed detection method Allround integration method FG
Rotational speed deviation no more than 0.002%
Drift time lapse: 0.00008% / u
Temperature variation: 0.00003% / °C.
Braking mechanism purely electronic
Toonarm section
Type oil brake system with static balance S-shaped pipe arm.
Effective length 250mm
Overhang 14mm
Tracking error + 2.1°, -1.2°
Needle pressure adjustment, weight 1, rotation 1g (0.1g scale).
Applicable pattern weight 4g to 13g when using the included shell.
Height adjustment range + / - 3mm
Main help aluminium impact-resistant casing, dead weight 10.5 g
Fastening mechanism quartz locking indicator
Quick stop
Silent lift up (electronic, only PL-30)
Used semiconductors Quartz: 1
IC:6
Transistor: 4
Diode: 4
Voltage 230 V AC, 50 Hz/60 Hz
Power consumption PL-30L: 12W
External dimensions Width 490 x Height 180 x Depth 401 mm
Weight 11.5 kg
Details
Era
1900-2000
Brand
Pioneer
Model
PL-30L
Multiple Models
No
Physical condition
Mint
Nr of items
2
Includes
Box
Year of Manufacturing
1990
Weight
15 kg
Functional condition
Tested and working/playable
