Philips - CD-104 CD player

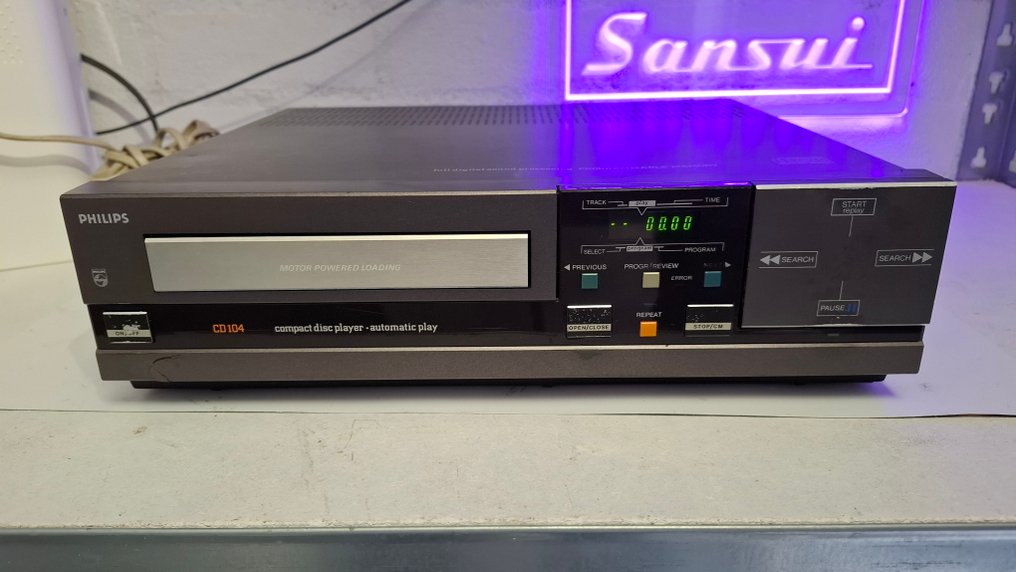

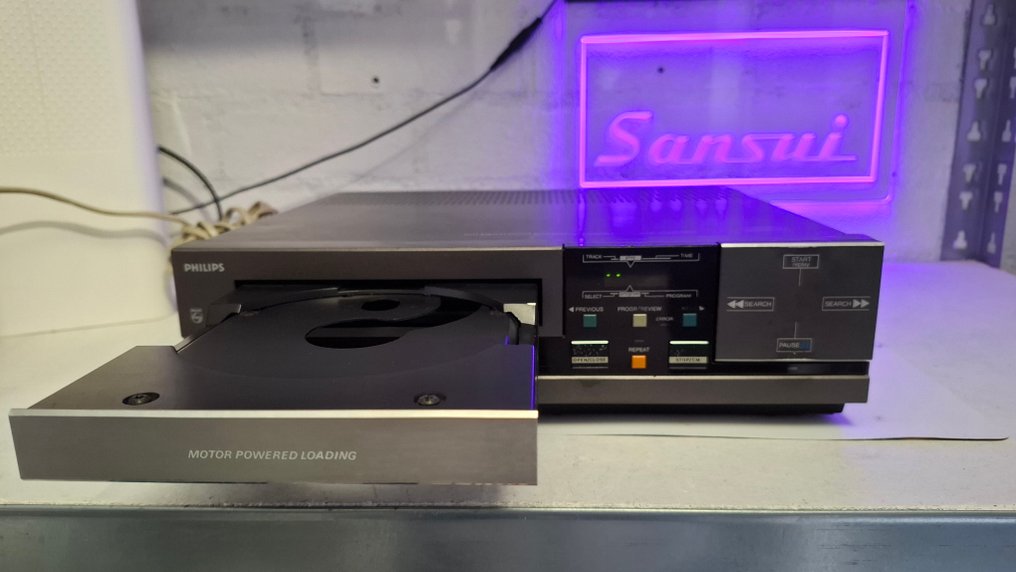

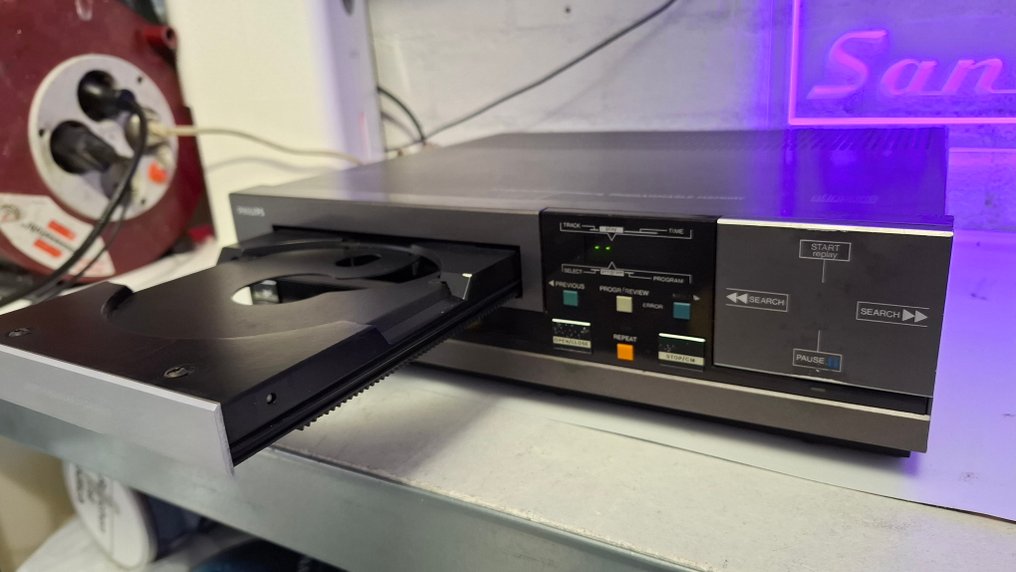

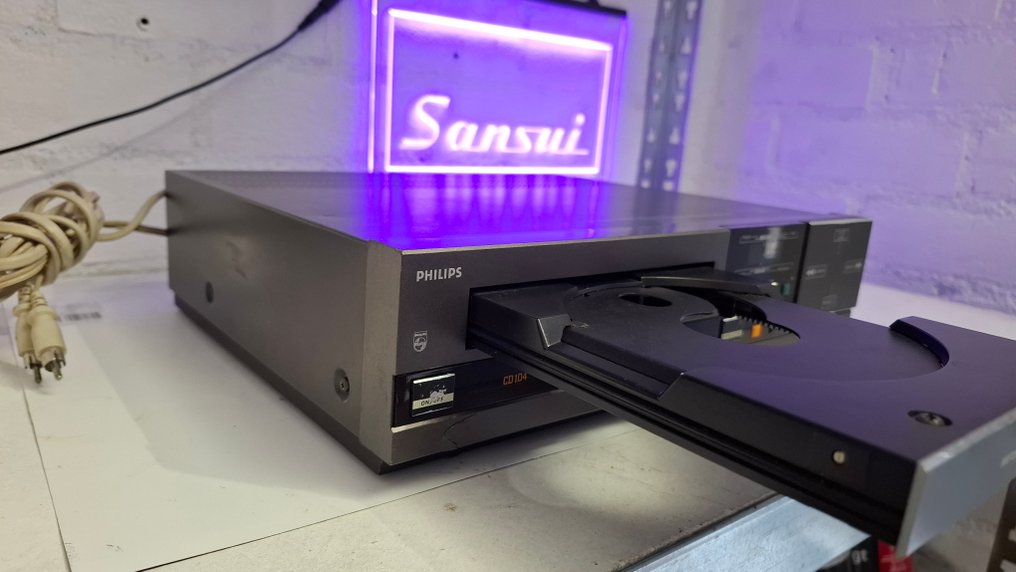

Here is a well-functioning CD player from Philips

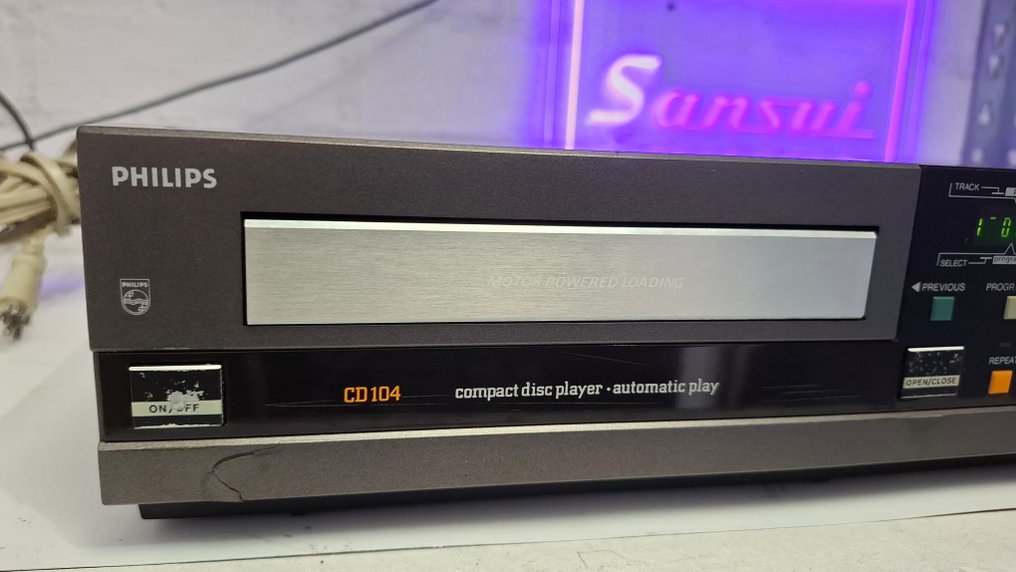

Front has some damage on the right side
Search photos for appearance


Manufacturer: Philips
Model: CD 104
Type: CD player
Years of construction: 1983 - 1985
Made in: Belgium
Color: Silver/Brown
Remote control: no
Power consumption: 30 W
Dimensions: 320 x 90 x 300 mm (WxHxD)
Weight: 7 kg
Original price approx.: 1,150 DM (1984) Price in 1984.

Technical data

2 channels
Frequency range: 20 - 20,000 Hz
Dynamic range: 96 dB
Noise margin: 96 dB
Channel separation: 64 dB at 1,000 Hz
Distortion attenuation: 0.003% at 1,000 Hz
Uniformity: Quartz precision
Digital/analog converter: 16-bit oversampling with digital filter and 14-bit D/A converter
Error correction system: CIRC
Audio output signal: 2 V rms
Laser type: AlGaAs semiconductor
Wavelength: 800 nm
Sampling frequency: 4.1 kHz
Quantization: 16-bit linear
Mains voltage: 220 V
Frequency: 50 and 60 Hz
Power consumption: approx. 30 Watts
Material and construction: metal and polystyrene with aluminium finish
Plate: diameter 120 mm
Thickness: 1.2 mm
Direction of rotation: left
Scanning speed: 1.2 - 1.4 m/s
Rotational speed: 500 - 200 rpm
Track spacing: 1.6 µm
