Pioneer - FX SX-440 Solid state stereo receiver

This rare Pioneer FX-440 stereo receiver is in very neat condition.
A must-have for every Pioneer collector.

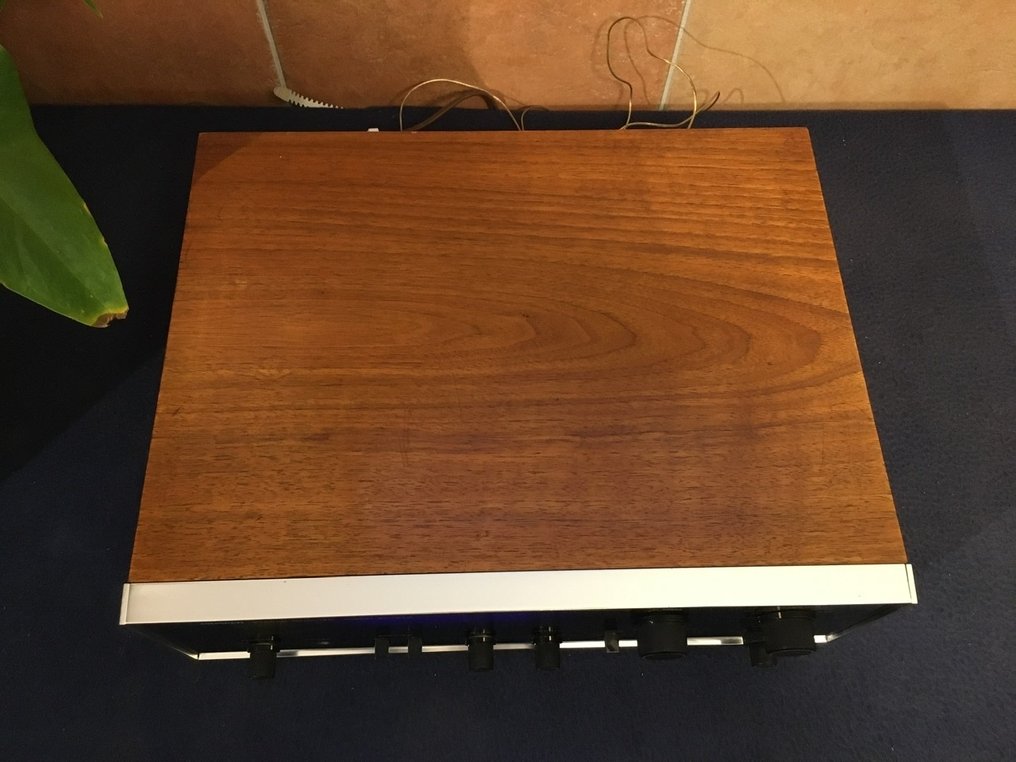

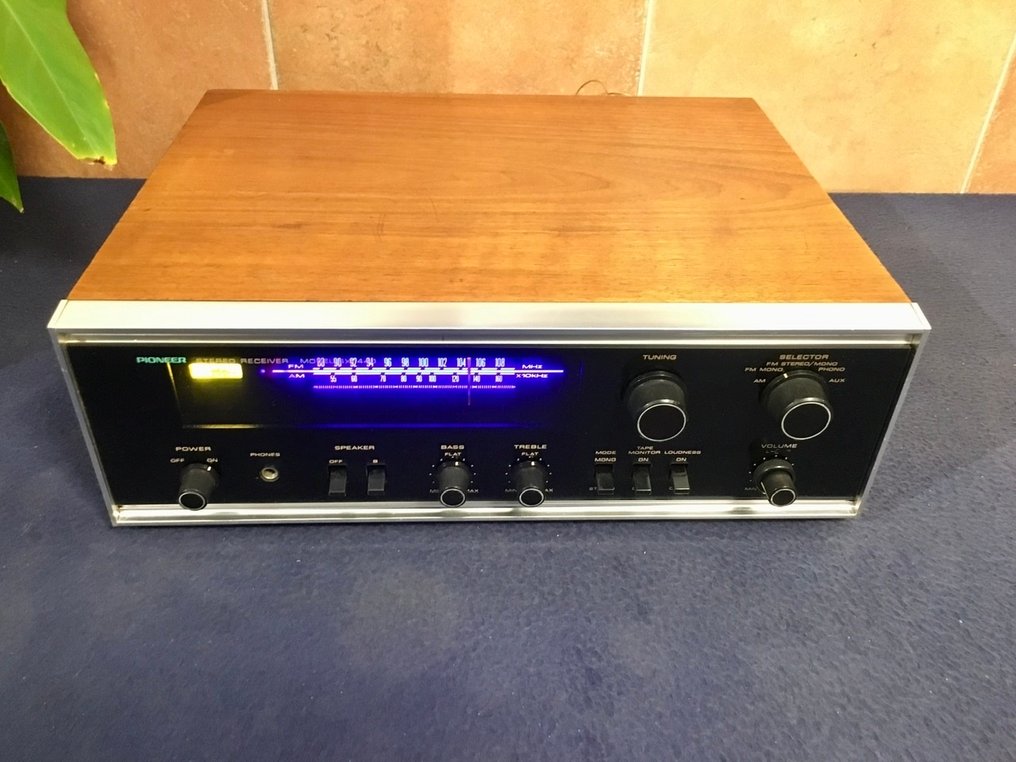

It has new led lighting and look far much nicer than on the photos! The camera can't handle blue light, it looks purple now.
Good stereo reception
Contacts cleaned

Speaker break out plugs

Some specifications:
Manufacturer: Pioneer
Model: SX-440
Year of manufacture: 1969 - 1972
Made in: Japan
Color: Black / Silver
Remote control: no
Power consumption: 80 W max.
Dimensions: 405 x 139 x 358 mm (WxHxD)
Weight: 8 kg
Original price approx.: 887 DM (1970)

Connections

Number of inputs:
Phono (MM): 3 mV / 47 kOhm.
Tape, Aux: 130 mV / 100 kOhm

Antenna (FM: 75, 300 Ohm, AM).
Number of outputs:
Tape Rec: 230 mV
Headphones (6,3mm jack)
2 pairs of loudspeakers

Technical Data

Amplifier

Continuous power (at distortion):
8 Ohm: 2x 12 W
4 Ohm: 2x 15 W

Dynamic power:
8 Ohm: 33 W
4 Ohm: 40 W
Total harmonic distortion: < 1,0 % bei 1 kHz, Nennleistung
Dämpfungsfaktor: 25 bei 8 Ohm
Frequenzgang: 20 - 70.000 Hz, ± 3 dB
Signalrauschabstand:
Phono: >75 dB
High Level: > 85 dB

Stereo channel separation:
Phono: > 60 dB
High Level: > 50 dB

Tone control:
Bass: + 13 dB, - 11 dB at 50 Hz
Treble: + 9.5 dB, - 10 dB at 10 kHz
Loudness: + 12 dB 50 Hz, + 6 dB at 10 kHz
High Filter:
Low Filter (Subsonic):

Tuner

Reception: FM/MW
Frequencies:
FM: 88 - 108 MHz
MW: 535 - 1605 KHz
Input sensitivity:
FM: 2.5µV
MW: 8µV
Frequency response: 24 - 20'000 Hz, + 0,5 dB, - 3 dB
Distortion factor: 0.4
Signal to noise ratio: 50 dB
Channel separation: 35 dB at 1 kHz
Selectivity: 40 dB at 400 kHz
Co-wave selection:
Spurious selection: 96 dB
Image frequency attenuation: 55 dB
IF attenuation:
AM suppression:

Special Features

Front panel in "Midnight Black"

Carefully shipped
