Pioneer - SX-450 Solid state stereo receiver

Cool looking vintage Pioneer with new green led lighting. Real glass scale plate and all aluminium faceplate and knobs. The sound is very good. Receives very good in stereo. Al contacts and pots are cleaned inside. New red leds in power and stereo indicator. Good Phono input. New wrap on the panels Power cord included Carefully shipped! The Pioneer SX-450 is a 15 watt FM/MW stereo receiver featuring FM muting, tape monitor switch and provision for 2 pairs of speakers. The unit employs a direct-coupled OCL circuit in the power amplifier with a first-stage differential amplifier. High FM sensitivity is ensured by a low noise FET in the front end with a frequency linear 3-gang variable capacitor. Specifications Tuning range: FM, MW Power output: 15 watts per channel into 8Ω (stereo) Frequency response: 20Hz to 60kHz Total harmonic distortion: 0.5% Damping factor: 25 Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (line) Signal to noise ratio: 70dB (MM), 90dB (line) Output: 150mV (line) Speaker load impedance: 4Ω (minimum) Semiconductors: 1 x FET, 3 x IC, 28 x transistors, 15 x diodes Dimensions: 448 x 141 x 307mm Weight with box 11 kg Accessories: FM T-type antenna Year: 1976 Insured shipping. Pictures are part of the description. Little rust spots on the back.

No. 99936792

Sold
Pioneer - SX-450 Solid state stereo receiver

Pioneer - SX-450 Solid state stereo receiver

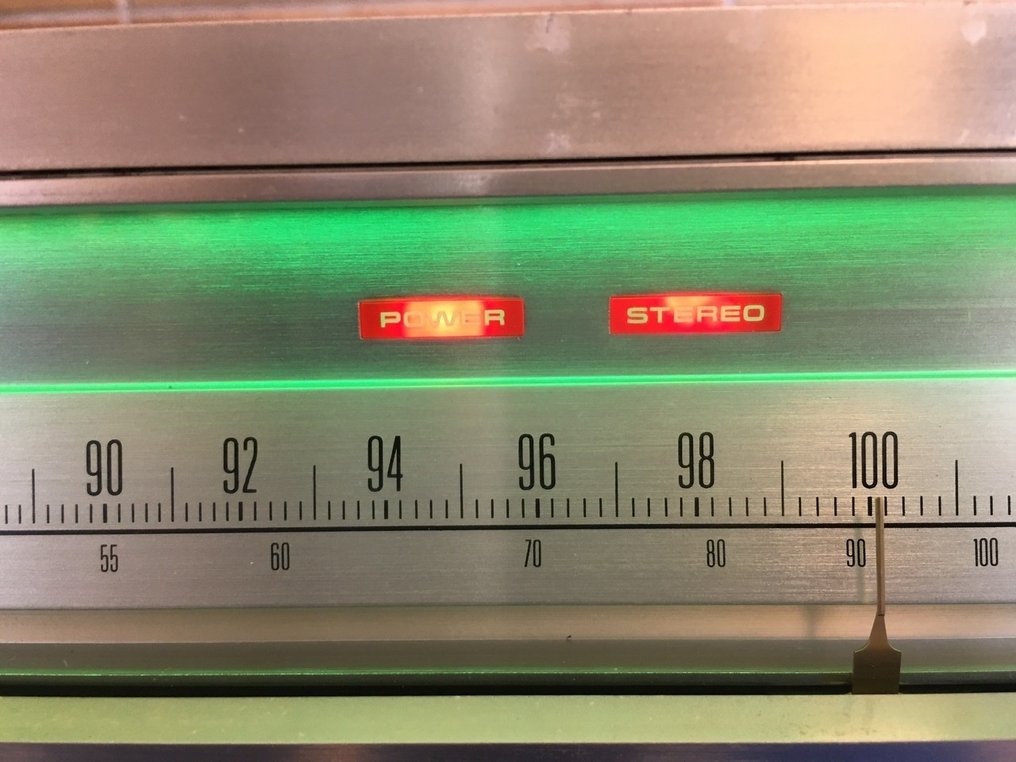

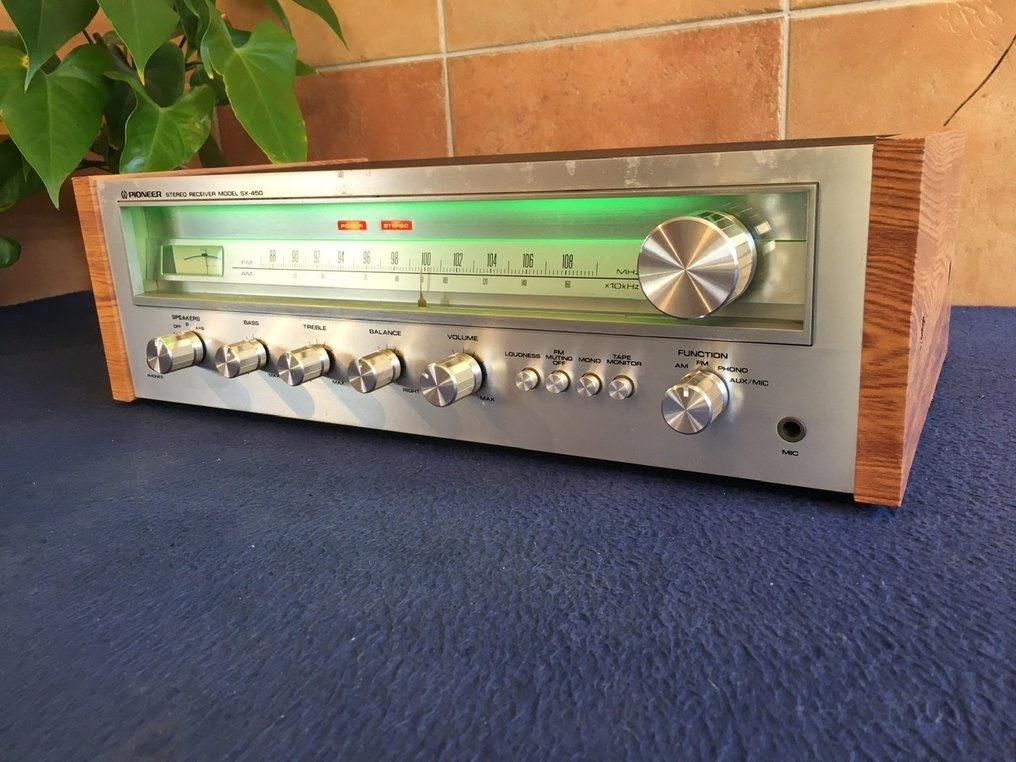

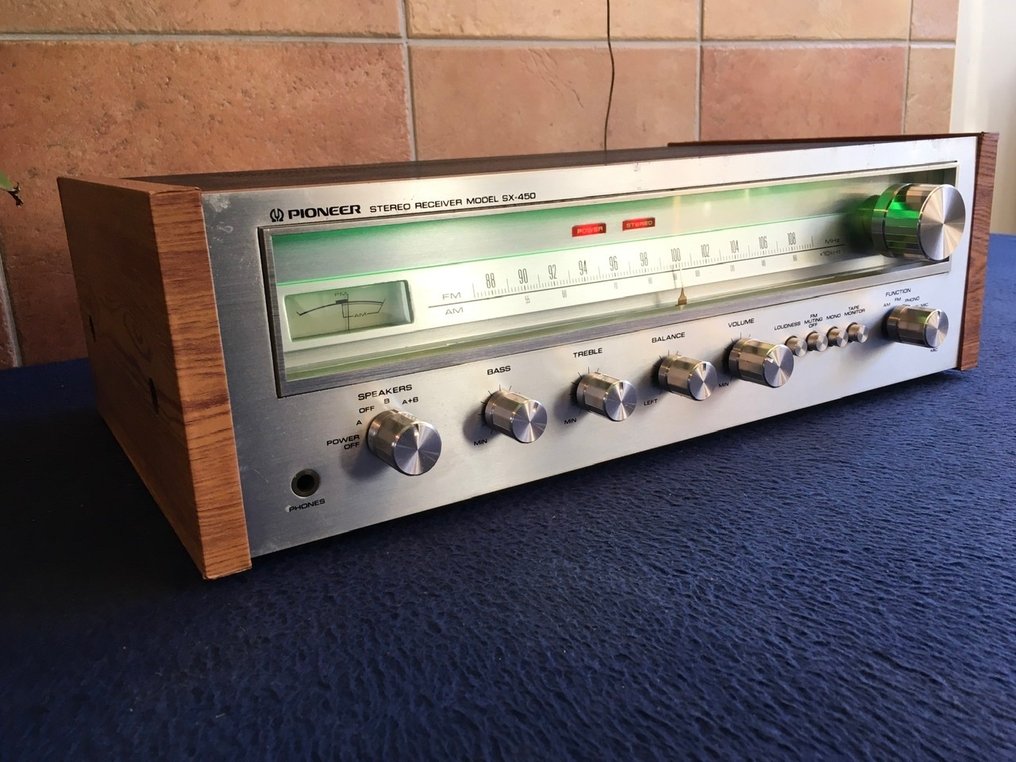

Cool looking vintage Pioneer with new green led lighting.
Real glass scale plate and all aluminium faceplate and knobs.
The sound is very good.
Receives very good in stereo.
Al contacts and pots are cleaned inside.
New red leds in power and stereo indicator.
Good Phono input.
New wrap on the panels

Power cord included
Carefully shipped!

The Pioneer SX-450 is a 15 watt FM/MW stereo receiver featuring FM muting, tape monitor switch and provision for 2 pairs of speakers.

The unit employs a direct-coupled OCL circuit in the power amplifier with a first-stage differential amplifier.

High FM sensitivity is ensured by a low noise FET in the front end with a frequency linear 3-gang variable capacitor.

Specifications
Tuning range: FM, MW

Power output: 15 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 60kHz

Total harmonic distortion: 0.5%

Damping factor: 25

Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 70dB (MM), 90dB (line)

Output: 150mV (line)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 1 x FET, 3 x IC, 28 x transistors, 15 x diodes

Dimensions: 448 x 141 x 307mm

Weight with box 11 kg

Accessories: FM T-type antenna

Year: 1976

Insured shipping.
Pictures are part of the description. Little rust spots on the back.

Final bid
€ 200
Ariel Cabello
Expert
Estimate  € 330 - € 400
