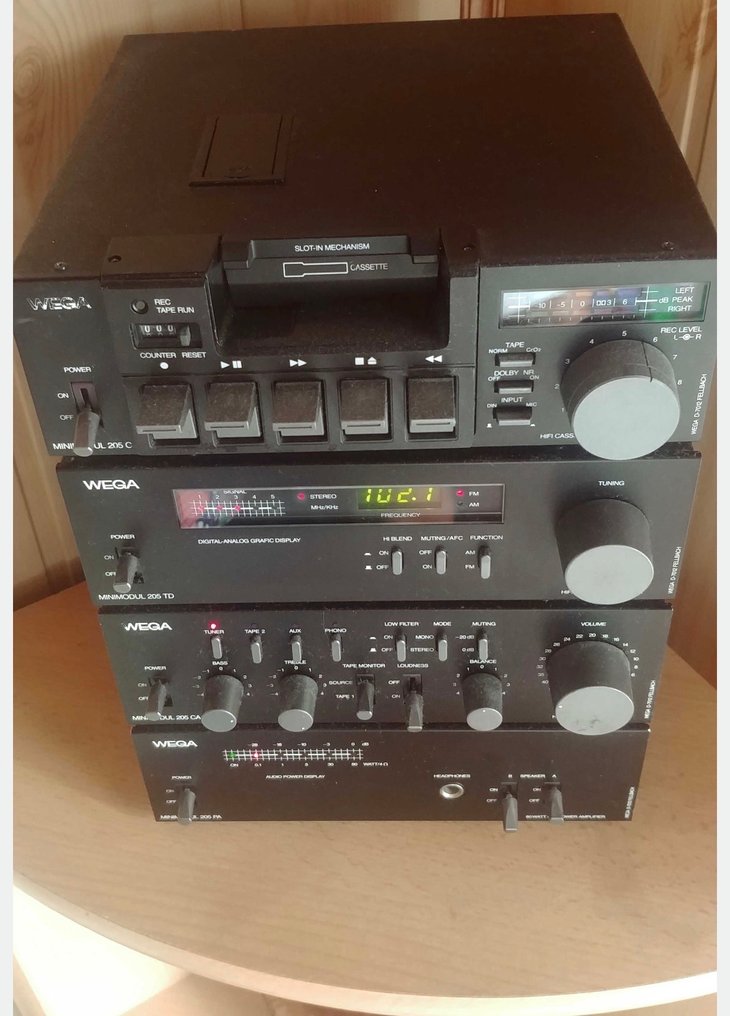

Vintage WEGA Minimodul 205TD tuner with companion 205PA power amplifier and 205CA preamplifier, manufactured in 1979, in good physical condition and tested working, weight about 21 kg.
Description from the seller
Welcome and we invite you to bid on a beautiful and amazing Wega set, solid vintage equipment. The equipment is from 1979, from the Golden Age of Audio.
Wega Minimodul 205 (Sony), consisting of a power end, preamplifier, and tuner.
Power output: WEGA MINIMODUL 205PA (WEGA MINIMODUL 205 PA)
Preamp WEGA MINIMODUL 205CA (WEGA MINIMODUL 205 CA)
Tuner WEGA MINIMODULE 205TD (WEGA MINIMODULE 205 TD)
Magnetofon 205 C tapes for replacement.
The modest-looking Wega set from the Minimodul series offers incredible sound quality, with surprisingly good audio performance. These excellent devices are made from high-quality components and Sony integrated circuits. All packed into a mini size, yet delivering very warm sound, balanced across the entire spectrum, with great speed and exceptional dynamics for such small elements.
The equipment is functional, tested, and the lighting is operational. The power amplifier has switches for selecting speaker sets and LED power indicators. The analog tuner features a digital display, a stereo indicator, and a level meter; it is very sensitive and easily receives stations in stereo mode.
All functions are operational on the preamp. It is equipped with tone control, which allows for a wide range of sound color variation.
The devices are cleaned; after lubricating and cleaning the switches, the potentiometers operate smoothly. All three components perform very well.
The package includes only power cables.
- Visual condition visible in the photos, equipment kept in good condition, present nicely, showing normal signs of use, but considering their age, they are maintained in a nice state. We invite you to view the photos.
Details of the endings
Power output: 30 watts per channel into 4Ω (stereo)
Frequency response: 20Hz to 20kHz.
Total harmonic distortion: 0.04%
Damping factor: 15
Input sensitivity: 0.6V
Signal to noise ratio: 95dB
Speaker load impedance: 4Ω (minimum)
Dimensions: 205 x 65 x 207mm
Year: 1979
Preamplifier specifications
Frequency response: 20Hz to 20kHz
Input sensitivity: 2.5mV (MM), 150mV (line)
Output: 150mV (line), 0.6V (Pre out)
Dimensions: 205 x 65 x 173.5mm
Year: 1979
Dane tunera
Mono/Stereo Tuner
Tuning bands: FM, MW
Tuning Scale: Digital
FM Tuning Range: 87.5 to 108 MHz
MW Tuning Range: 530 to 1605 kHz
Sensitivity: 1.9uV (FM), 30uV (MW)
Signal to Noise Ratio: 70dB (FM), 50dB (MW)
Distortion: 0.25% (FM), 0.9% (MW)
Selectivity: 70dB (FM)
Frequency response: 30Hz to 15kHz (FM)
Output: 150mV (FM)
Dimensions: 205 x 65 x 173.5 mm
The input appears to be incomplete or missing context, so I cannot provide a translation.
Year: 1979
approximate weight
